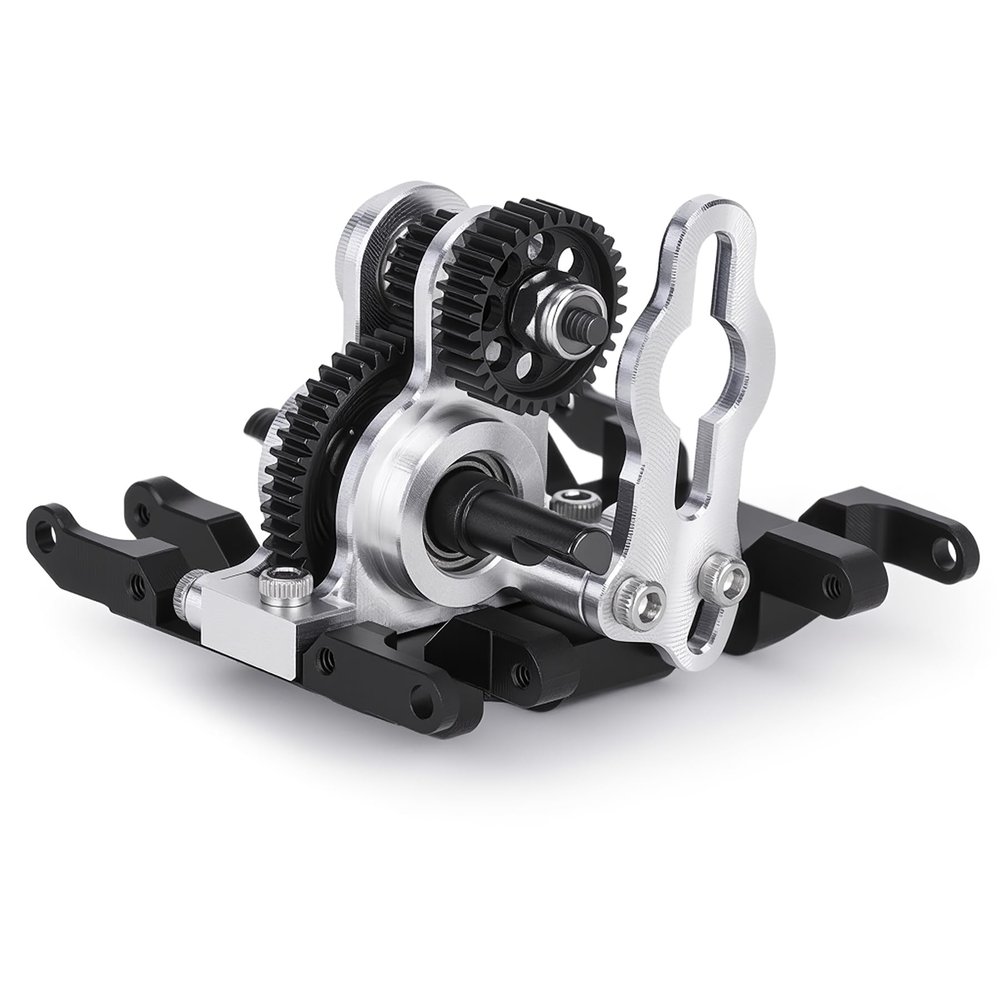

1/24 RC Crawler Transmission Upgrade, Ultralight CNC Aluminum Gearbox with Hardened Steel Gears, Delrin Skid Plate, Low Center of Gravity Rear Motor Mount for SCX24 AX24

Description

• Competition Grade SCX24 Transmission Upgrade Designed for SCX24 and AX24 custom builds, this 1/24 RC crawler competition transmission delivers ultra-lightweight performance, improved drivetrain efficiency, and enhanced crawling capability for serious RC enthusiasts and comp crawler setups
• Compatible with Furitek Micro Komodo Motors Designed for use with Furitek Micro Komodo sized motors and other small diameter brushless motors. Compatible with motors up to approximately 15.75mm in diameter. Larger motors and pancake style motors such as standard Komodo or Injora Viper are not supported
• Ultra-Light CNC Aluminum Gearbox Design Precision CNC machined aluminum gearbox with open housing construction and hardened steel gears built to handle dirt, mud, gravel, and trail debris during aggressive off-road crawling. Weighs only 8.5g transmission only, or 10.5g with Delrin skid plate installed
• Low CG Rear Motor Mount System Rear-facing motor layout lowers the center of gravity for improved stability on steep climbs and technical terrain. Adjustable motor positioning allows fine tuning for different upper link locations, pinion gear sizes, and motor setups in custom SCX24 builds
• Hardened Steel Gears for High Performance Crawling Features heat-treated alloy steel SAF style gears with integrated input and output shafts for maximum durability and drivetrain strength. The 2.68:1 ratio with 32T 0.3 mod spur gear delivers increased wheel speed, excellent low-speed control, and strong crawling torque
• Direct Replacement for SCX24 AX24 Platforms Includes Delrin skid plate for easy installation as a direct replacement transmission upgrade for SCX24 and AX24 RC crawler platforms. Ideal for lightweight competition rigs, custom crawler builds, and performance-focused drivetrain upgrades

Product Details:
Fits SCX24 and AX24 platform.

Designed for the Furitek Micro Komodo sized motors (medium diameter), all smaller motors will fit, any motor length will fit, large diameter motors will not fit.
The Micro Komodo is 15.75mm around by 20.5mm long. Note: LARGER MOTORS WILL NOT FIT

Note: Motors like the normal Komodo, Injora Viper, or other "pancake" style motors will not work

Competition grade.

Incredibly lightweight.

Aluminum body with open design. Don't worry, these gears designed to handle dirt, mud, gravel, and trail debris during off-road crawling

Motor relocated much lower for lower center of gravity.

Carbon fiber motor plate.

Motor placement is adjustable higher or lower as needed to clear any combination of upper link location, pinion size, and motor size. This means you can set the motor as low as possible for your specific setup.

Designed for rear facing motor (to allow room for front battery placement). Can possibly be mounted motor forward with some modifications.

2.68:1 ratio with 32 tooth, .3 mod spur gear.

32 tooth, .3 mod spur gear provides greatly increased wheel speed while still having great low speed control for competition crawling, and plenty of torque for bound up tires.

Includes Dlux spec. SAF style gears:

Heat treated alloy steel.

Lightened to the absolute maximum.

Integrated input/output shafts for increased drivetrain strength and durability

Attractive black surface coating.

This can be used as a direct replacement in your scx24

Weight: 11G (transmission with skid plate)
