Centrifugal Water Pump Model Gear Teaching Demonstration Gear Type Centrifugal Pump Model Science Teaching Aid Physics Teaching Demonstration Experimental Teaching Equipment

Description

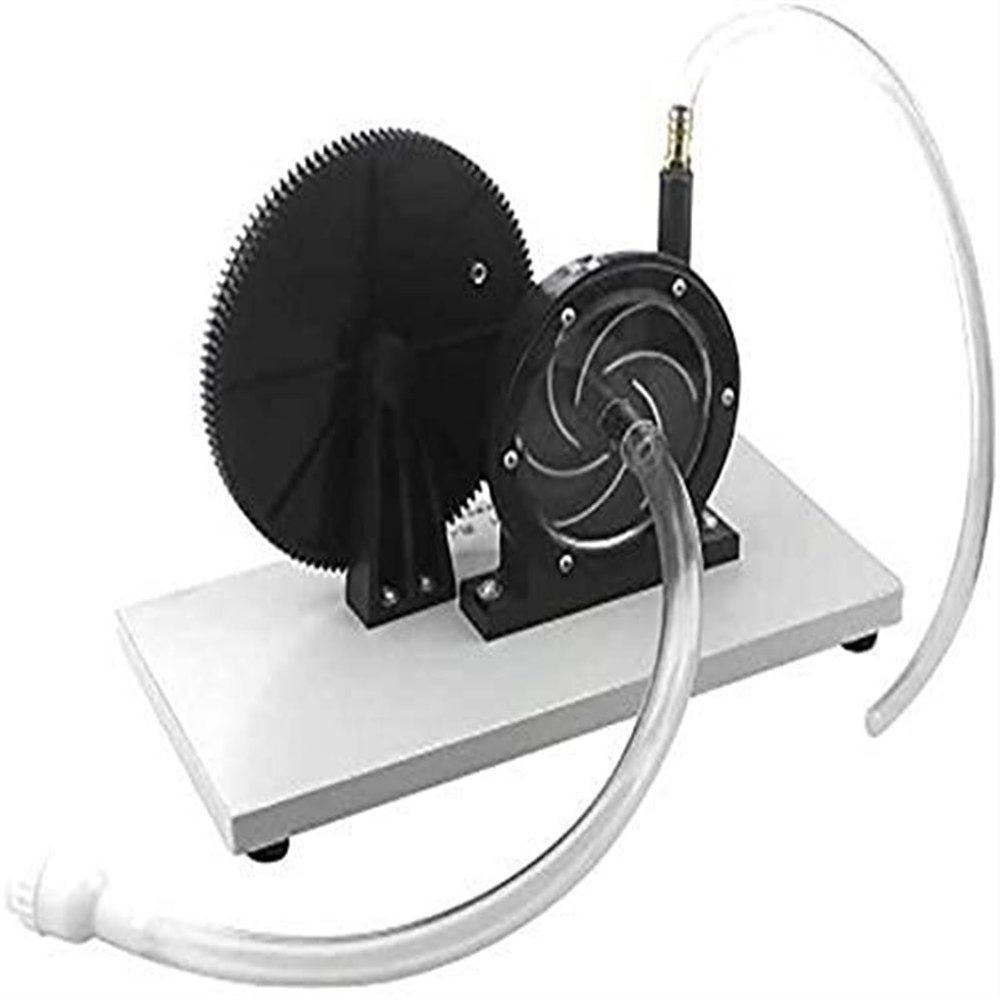

• This instrument is a single-stage centrifugal pump model, applying the principle of centrifugal force to illustrate the structure and working principle of the centrifugal pump.
• The instrument mainly has the following components: in the pump chamber composed of the casing and the transparent cover plate, the rotating shaft and the impeller fixed on the shaft are arranged; in the tangential direction of the outer edge of the casing step, there is a drain pipe; in the axial direction of the rotating shaft There is a suction pipe; the venting screw is plugged in the upper part of the casing: the rotating wheel of the size is connected by a gear.
• The entire instrument is attached to the base.

[name]: centrifugal pump model[weight]: 1.7kg (including the base)[Specification]: 280 130 205mm[Description]: This instrument is a single-stage centrifugal pump model, applying the principle of centrifugal force to explain the structure and working principle of the centrifugal pump. The instrument mainly has the following components: in the pump chamber composed of the casing and the transparent cover plate, the rotating shaft and the impeller fixed on the shaft are arranged; in the tangential direction of the outer edge of the casing step, there is a drain pipe; in the axial direction of the rotating shaft There is a suction pipe; the venting screw is plugged on the upper part of the casing: the rotating wheel of the size is connected by a gear, and the whole instrument is fixed on the base.Pump shaft speed: 900 rpmImpeller diameter: 100 mmHead: 1 meterDimensions: 280X130205 mm
