Description
- Arduino Shield control for two brushed DC motor from DC 7V to 30V
- Able to control bidirectional single bipolar/unipolar stepper motor from 7V to 30V.
- Maximum Motor Current: 10A continuous, 30A peak
- Buttons for quick testing and indicator LEDs for motor output state
- Overcurrent protection, temperature protection and undervoltage shutdown.

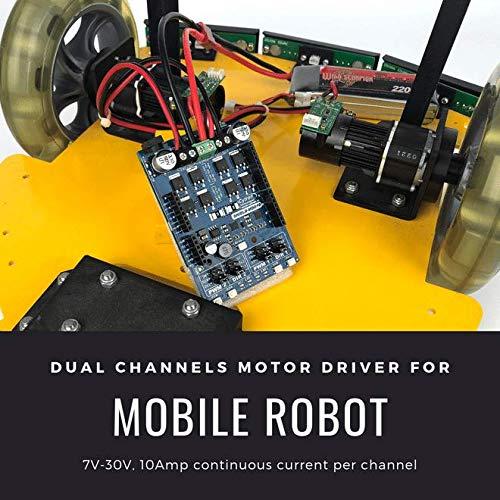

Building a mobile robot with Arduino? Want to control high power stepper motor? Look no further! SHIELD-MDD10 is a 2-channel high power motor driver shield for Arduino. It is able to control two brushed DC motors or single bipolar/unipolar stepper motor from 7V to 30V. With discrete NMOS H-Bridge design, this motor driver is able to support 10 Amp per channel continuously without any additional heatsink.

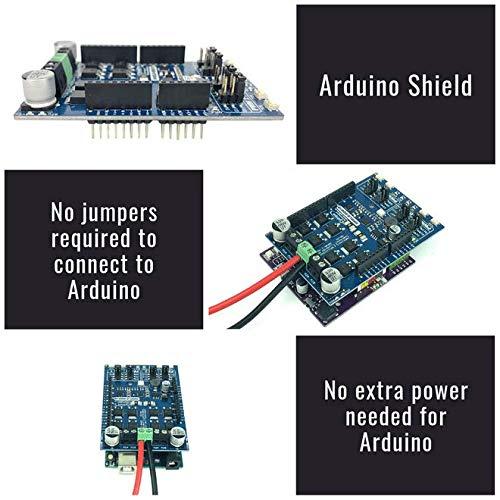

The onboard test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way. Buck regulator which produces 5V output is also available to power the Arduino mainboard.
Overcurrent protection prevents the motor driver from damage when the motor stalls or an oversized motor is hooked up.
Assisted by temperature protection, the maximum current limiting threshold is determined by the board temperature. The higher the board temperature, the lower the current limiting threshold. This way, SHIELD-MDD10 is able to deliver its full potential depending on the actual condition without damaging the MOSFETs.
Features: Shield for Arduino form factor. Bidirectional control for two brushed DC motor. Control one unipolar/bipolar stepper motor. Operating Voltage: DC 7V to 30V Maximum Motor Current: 10A continuous, 30A peak. Buck regulator to produce 5V output (500mA max). Buttons for quick testing. LEDs for motor output state. Selectable Arduino pins for PWM/DIR inputs. PWM/DIR inputs compatible with 1.8V, 3.3V and 5V logic. PWM frequency up to 20kHz (Output frequency is same as input frequency). Overcurrent protection with active current limiting. Temperature protection. Undervoltage shutdown.
Example Application:Automated Guided Vehicle (AGV), Solar Tracker, Game Simulator, Mobile Robot, Automation Machine.
