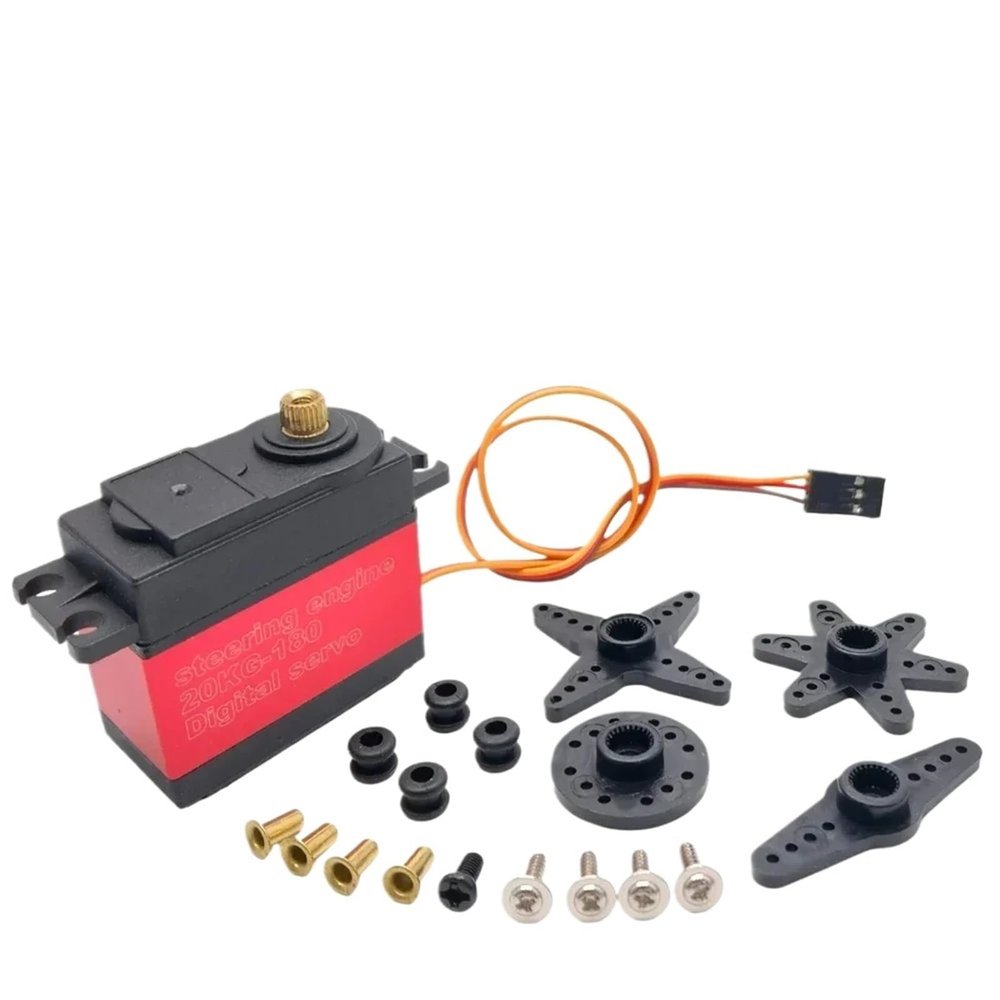

TD-8120MG Digital Servo Motor 180 270 360 Degree High Torque Metal Gear Servomotor 20kg 1Pcs(0-270 Degrees)

Description

• Alternators

Alternators
Specification:
Product Model: TD-8120MG
Dimension: 54.44mm x 40.45mm x 20mm
Rotation Angle: 0-180/0-270/360(Continuous Rotation)
Operation Voltage: 4.8 - 7.4Volts
Operating Speed: 0.25sec/60 degrees (4.8V)
Operating Speed: 0.14sec/60 degrees (7.4V)
Locked-rotor Torque: 19.8kg.cm (4.8V)
Locked-rotor Torque: 23.6kg.cm (7.4V)
Locked-rotor Current: 2400mA (4.8V)
Locked-rotor Current: 3100mA (7.4V)
Operating Temperature: 0 - 55
Shell: Engineering plastics+Aluminum alloy
Gear Material: Metal
Motor: Carbon brush motor
Dead Band Width: 5us
Operating Mode: Digital
Control Signal: PWM(1.5ms is the central point)
Accessories: Multi-arm, Fixing screws(AS the picture shows)
Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180/0-270 Degree
Can control the angle with PWM(0.5ms~2.5ms)2. Servo 360 Degree
360 Degree Servo rotates continuously. There is no 0-360 degree angle control function. If need to control the angle, plesae choose the option 0-180 Degree or 0-270 Degree Servo
Corresponding Various Angles and Control Signals of TD-8120MG Servo
Angle
Signal Circle
High Time
Ditrection
0-180
50Hz
0.5-2.5ms
Counterclockwise
0-270
50Hz
0.5-2.5ms
Counterclockwise
360continuous
50Hz
1.0-2.0ms
1.0ms Clockwise
1.5ms Stopped
2.0ms Counterclockwise
The direction the servo rotates all depends on the signal the servo is receiving
Packing: 1 x TD-8120MG Servo (Including Accessories)

Model Number : TD-8120MG
Type : Motor
Protect Feature : Totally Enclosed
Dimension : 54.44mm x 40.45mm x 20mm
Rotation Angle : 0-180/0-
