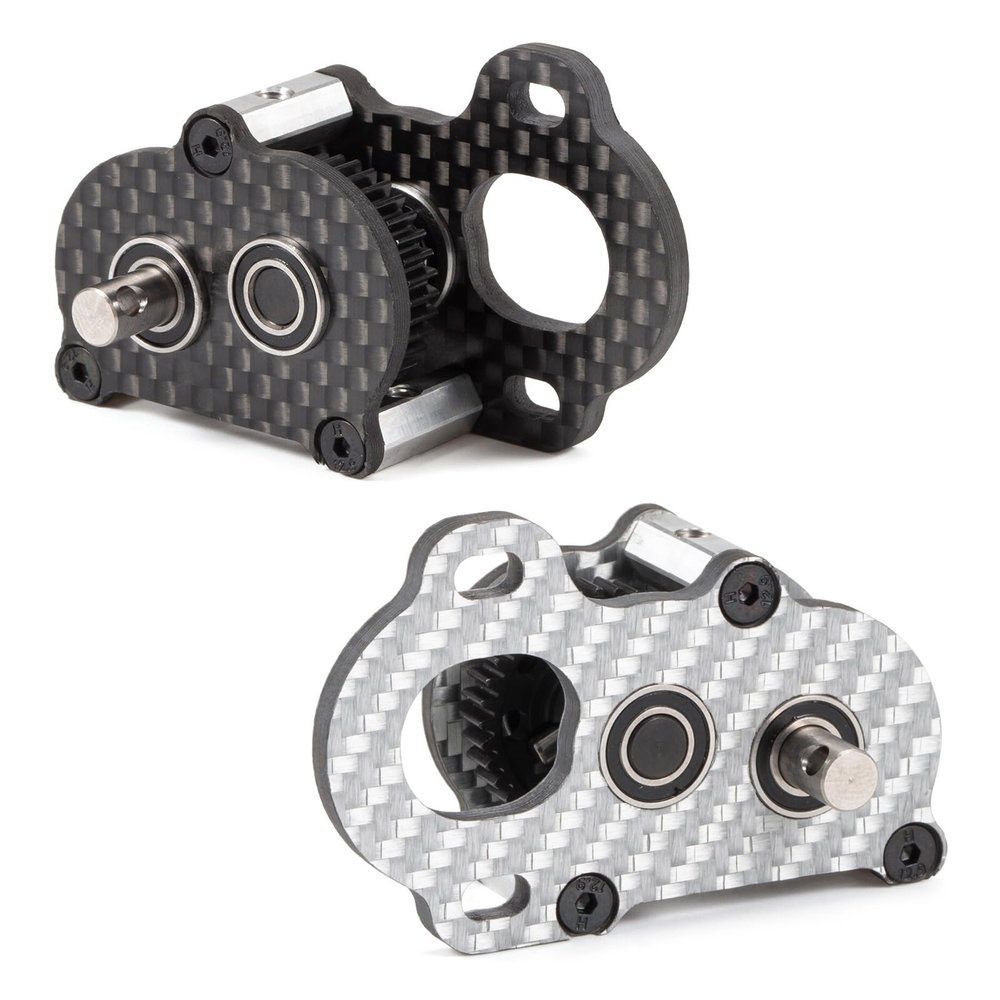

Ultra Light Portal Transmission 48P Carbon Tiny Gearbox 29g with Slidable Shim for Axial Capra F9 AR45 Vanquish F10 Portal Axle LCG Chassis (Silver)

Description

• Ultra-Lightweight Design (29g): Weighing just 29.3g, this portal transmission is incredibly lightweight, contributing to a low center of gravity (LCG) that enhances stability and performance in demanding RC crawler setups.
• Precision Gear Ratio and Compatibility: The 36T spur gear (48 pitch) offers a 3:1 low gear ratio, making it compatible with 48 pitch pinions from 11T to 18T. This flexibility allows for a range of gear ratios to fine-tune performance based on specific driving conditions.
• High-Strength Materials: Featuring a laser-cut carbon fiber case and hardened chromoly gears, this tiny gearbox offers exceptional durability and strength while maintaining an ultra-light profile for optimal performance in rugged environments.
• Grade 5 Titanium Output Shaft: The inclusion of a Grade 5 titanium 5mm output shaft increases strength and reduces weight, providing reliable torque transmission while keeping the overall weight of the gearbox to a minimum.
• Low Noise and Ultra-Smooth Operation: Engineered for low noise and ultra-smooth operation, this transmission ensures minimal friction and efficient power transfer, improving overall drivability and providing a quieter, more refined experience for RC enthusiasts.

Description

Feature:

Tiny Transmission for portal axles.

Laser cut carbon fiber case.

Hardened chromoly gears.

Grade 5 Titanium 5mm output shaft.

Only 29.3g, Ultra-Small and Ultra-Light. Ultra low center of gravity (LCG).

Low noise and ultra smooth.

Dimensions: 52.5mm W x 33.5mm H x 18.2mm L (not counting output shaft)

Motor bolt holes 25mm on center. Skid plate mounting holes 27.5mm on center (M3 threaded holes).

Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.

36T Spur Gear (48 pitch), 3:1 Low gear ratio.

Fits 48 Pitch pinions from 11T to 18T (Not Included)

Gear Ratio:

11T pinion: 9.8

12T pinion: 9.0

13T pinion: 8.3

14T pinion: 7.7

15T pinion: 7.2

16T pinion: 6.75

17T pinion: 6.35

18T pinion: 6.0

Included:

1x Tiny Transmission

1x Slidable Shim

1x Hardware Set
